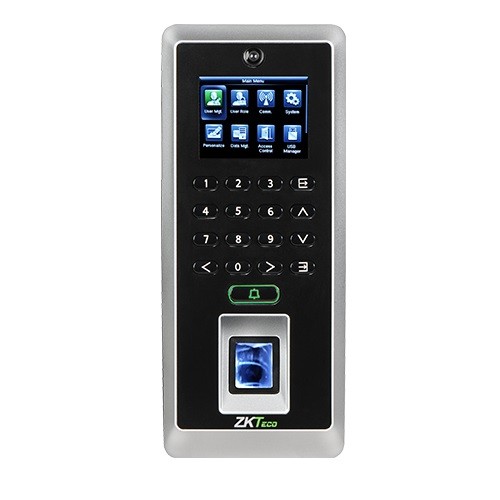

F21 Fingerprint Time Attendance and Access Control Terminal

F21 is the first time attendance and access control terminal applying
the most advanced Silk ID technology. It not only possesses
outstandingly high identification rate towards dry, wet and rough
finger, but also provides the utmost security by its live finger
detecting capability.as well as photo taking function which enables
attendance photo and Photo ID(optional).

In addition, with the brand new ZMM220 hardware platform, its
clock rate can attain 1.2GHZ. Such speedy hardware platform and
fingerprint algorithm greatly enhance the speed of fingerprint
verification.

Features:

• 2.4-inch TFT color screen
• Silk ID fingerprint reader with living object
detecting function
• Multiple Verification Modes: Multi-verification
methods (card is optional) providing user
various choices
• Full Access Control Features: Anti-pass back,
access control interface for 3rd party electric
lock, door sensor, exit button, alarm
and doorbell
• Camera Function: record photo, photo
ID (optional)
• Built-in auxiliary input with enhanced flexibility
to link with wired detector or emergency switch

Specifications:

• Display 2.4-inch TFT LCD Color Screen
• Fingerprint Capacity 3000
• Card Capacity 5000(Optional) ID or mi-fare card
• Transaction Capacity 100,000
• Sensor Silk ID Sensor
• Algorithm Version ZK Finger VX10.0
• Communication RS232/485, TCP/IP, USB-host
• Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
• Wiegand Signal Input, Output, SRB
• Aux. Input 1ea for linkage function
• Functions DST, Automatic Status Switch, Anti-pass back, Scheduled-Bell, Printer(Optional)
• Power Supply 12V DC,3A
• Operating Temperature 0 °C- 45 °C
• Operating Humidity 20%-80%
• SDK and software Standalone SDK,ZKAccess3.5 software
